50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio

Name: 50BYJ466 15V DC Permanent Magnet Stepper Motor with 15 Step Angle and 3331 Gear Ratio
Brand: VIC-TECH
Price: 10 USD

China 50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio wholesale

Brand Name : VIC-TECH

Model Number : 50BYJ46-6

Certification : RoHS

Place of Origin : China

MOQ : 1Unit

Price : $10/unit

Payment Terms : MoneyGram,Western Union,Credit Card,T/T,L/C

Supply Ability : 10000Units/month

Delivery Time : 15-30 work days

Packaging Details : Standard export package, or can be customized

Drive method : 2-2 phase

Resistance : 23Ω±7%/phase

Step angle : 15°

Drive voltage : 15V DC

Gear ratio : 1:33.3

Contact Now

50BYJ46-6 15V DC 15° step angle stepper motor with permanent magnet gearbox, gear ratio 33.3:1

This is a 50mm diameter bipolar stepper motor with four cables.
The motor has a built-in gearbox with a reduction ratio of 33.3:1.
This motor can be used in household appliances or other electronic products, including those requiring repairs.
The motor thread has an M3 thread for a fixing screw. Therefore, customers can design a small gear with a 3mm diameter round hole on the top and fix it with an M3 screw.
The drive voltage is 15V DC, which is proportional to the motor's coil resistance.
The motor resistance, shaft design, cable length, and connector type can all be customized.
Customers can also modify these parameters to meet their own design requirements.
Our products can be customized, if you are interested, you can write to me.

50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio

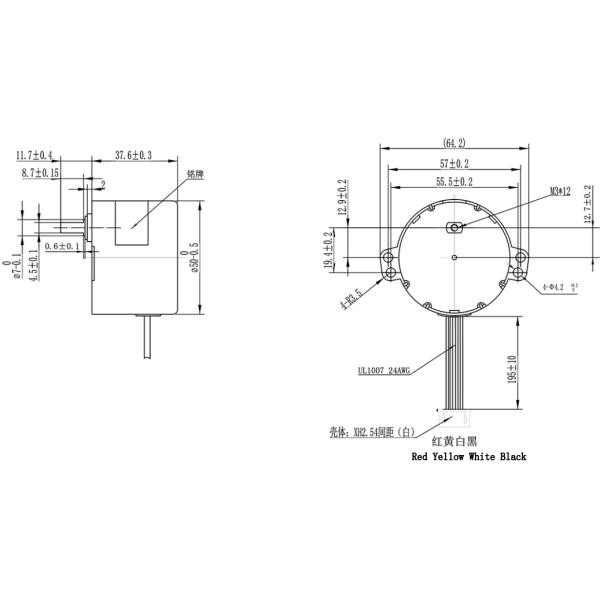

Mechanical Dimension:MM

50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio

Typical Applications

Saliva Analyzer
Blood Analyzer
Welding Machine
Intelligent Security Products
Fiber Fusion Splicer
Digital Electronics

Specifications

Product Name	50BYJ geared stepper motor
Model No.	50BYJ46-6
Motor diameter	50mm
Resistance	23Ω±7%/phase
Phase No.	2 phases (Bipolar)
Step angle	15°/33.3
Drive voltage	15 VDC
Gear ratio	33.3:1
Max starting frequency(15V)	>200 PPS
Pull-in torque(15V)	147 mNm

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio
